Engine Coolant Heating

Engine Preheaters

Engine preheaters available in compact, inline and pump-assisted configurations, with heating outputs from 500W to 9000W for engine capacities from approximately 2L to 75L.

500W–9000W Heating Output

AC & DC Configurations

2L–75L Engine Range

Engine preheater technical specifications

Product Overview

Engine Coolant Preheaters for Different Engine Capacities

The Stallion Engine Preheater range is designed to heat engine coolant before startup. The product range includes compact vertical preheaters, horizontal inline heaters, temperature-controlled units and pump-assisted preheating systems, providing different configurations for varying engine capacities and installation requirements.

Heating outputs range from 500W to 9000W, with AC 240V single-phase, AC 415V three-phase and DC 48V options. Depending on the selected model, the range supports engine capacities from approximately 2L to 75L. Compact engine preheaters use Ø16mm coolant connections, while medium- and high-capacity models use 1-inch NPT inlet and outlet connections.

Selected models include temperature-control switches, digital control interfaces, alarm indication and integrated coolant circulation pumps. The range is listed with IP44 protection, 10MΩ insulation resistance, 1800V voltage strength and heater chambers pressure tested to at least 0.5MPa.

Request a Quote Download Datasheet

Why Choose This Product

Features & Benefits

The Stallion Engine Preheater range provides multiple power, voltage, connection and control options for different engine-coolant heating requirements.

Wide Heating Range

Models are available with heating outputs from 500W to 9000W for different engine-capacity requirements.

Multiple Voltage Options

The range includes AC 240V single-phase, AC 415V three-phase and DC 48V configurations.

Engine Capacity Coverage

Available models cover engine capacities from approximately 2 litres to 75 litres.

Multiple Configurations

Choose from compact vertical heaters, horizontal inline models, controlled units and pump-assisted systems.

Control Options

Temperature-control switches, digital interfaces and alarm indication are available on selected models.

Connection Options

Compact models use Ø16mm coolant connections, while larger models use 1-inch NPT inlet and outlet connections.

Technical Data

Key Specifications

Technical values vary according to the selected Engine Preheater model and configuration.

Request Full Datasheet

Product Type	Engine Preheater
Heating Output	500W to 9000W
Voltage Options	AC 240V, AC 415V and DC 48V
Electrical Configurations	AC 240V 1P2W and AC 415V 3P4W
Applicable Engine Capacity	Approximately 2L to 75L
Inlet and Outlet Connections	Ø16mm or 1-inch NPT
Protection Level	IP44
Insulation Resistance	10MΩ
Voltage Strength	1800V
Pressure Test	≥0.5MPa
Operating Temperature	-20°C to 70°C or -30°C to 40°C, model dependent
Storage Temperature	-30°C to 80°C or -40°C to 70°C, model dependent

Available Options

Selecting an Engine Preheater

Select the appropriate Engine Preheater according to engine capacity, available voltage, required heating output, coolant connection and preferred control arrangement.

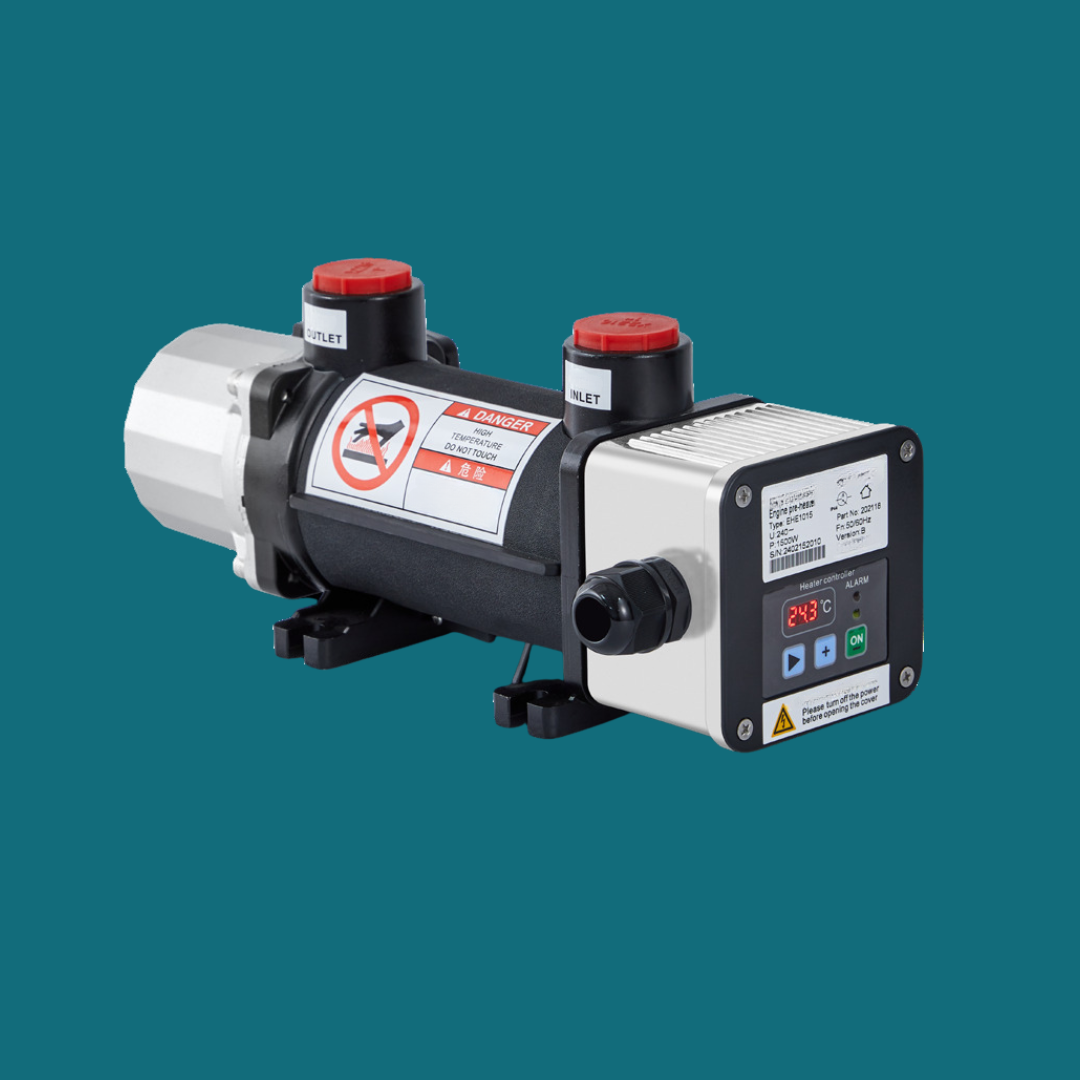

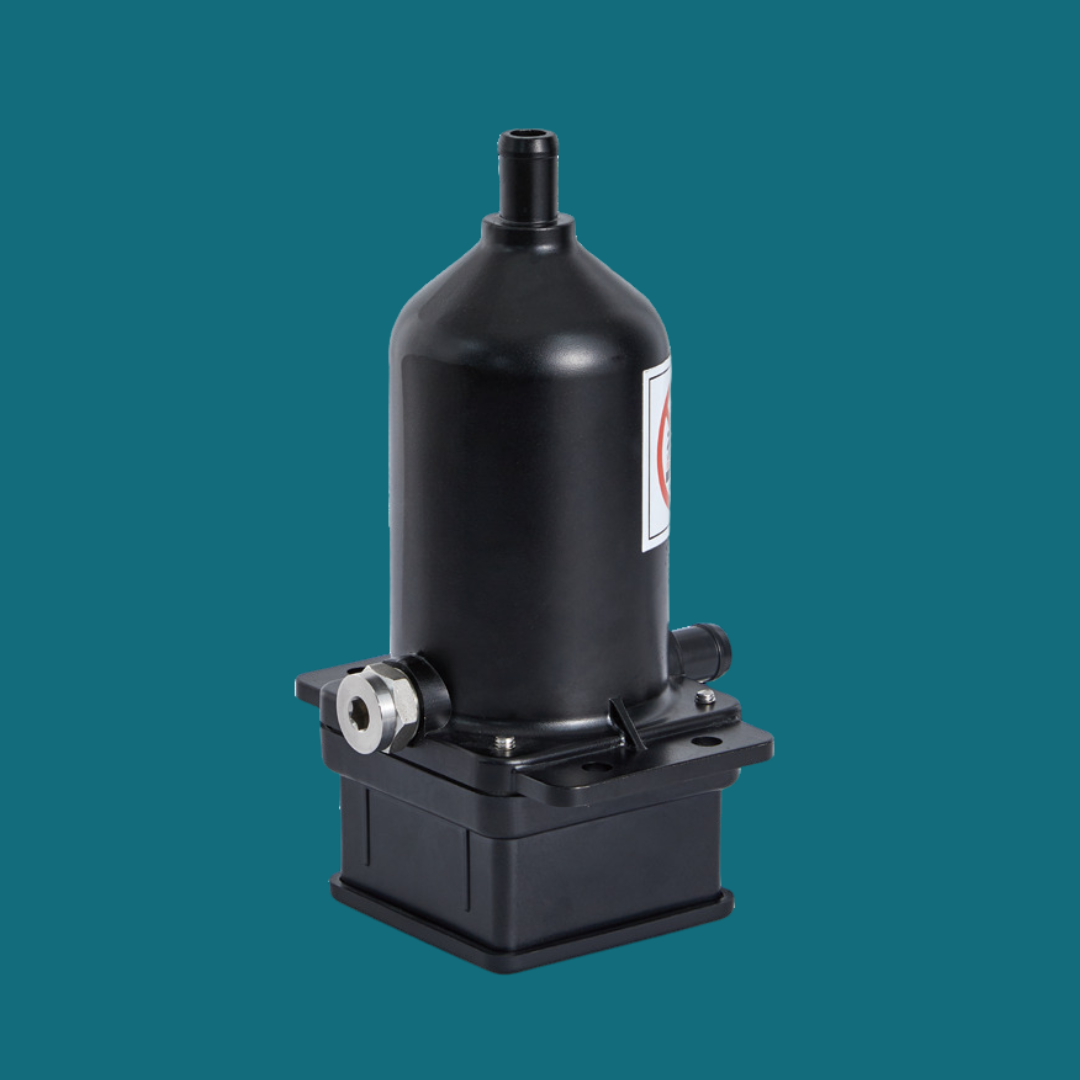

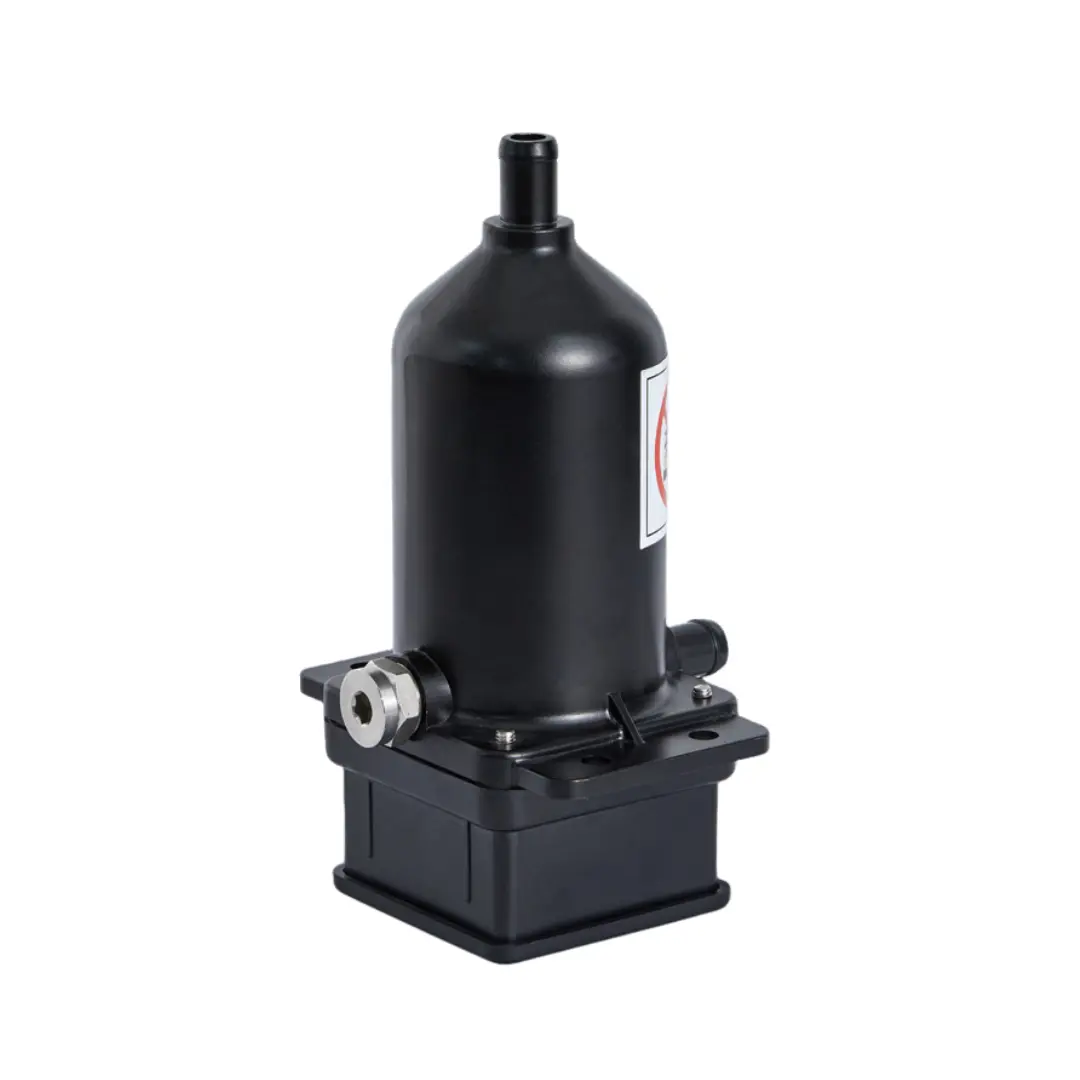

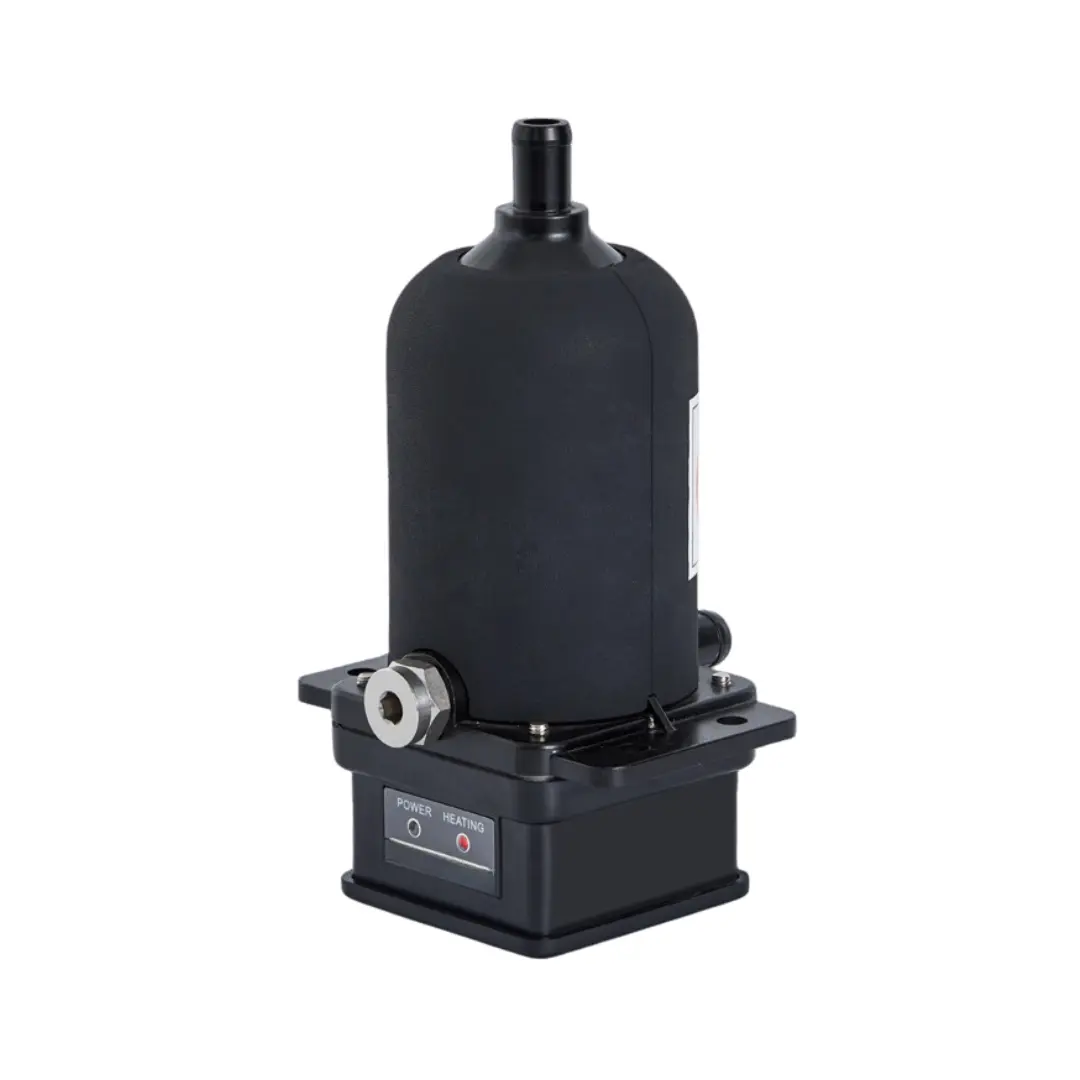

Compact Engine Preheaters

Compact AC and DC models are available for engine capacities from approximately 2L to 7L.

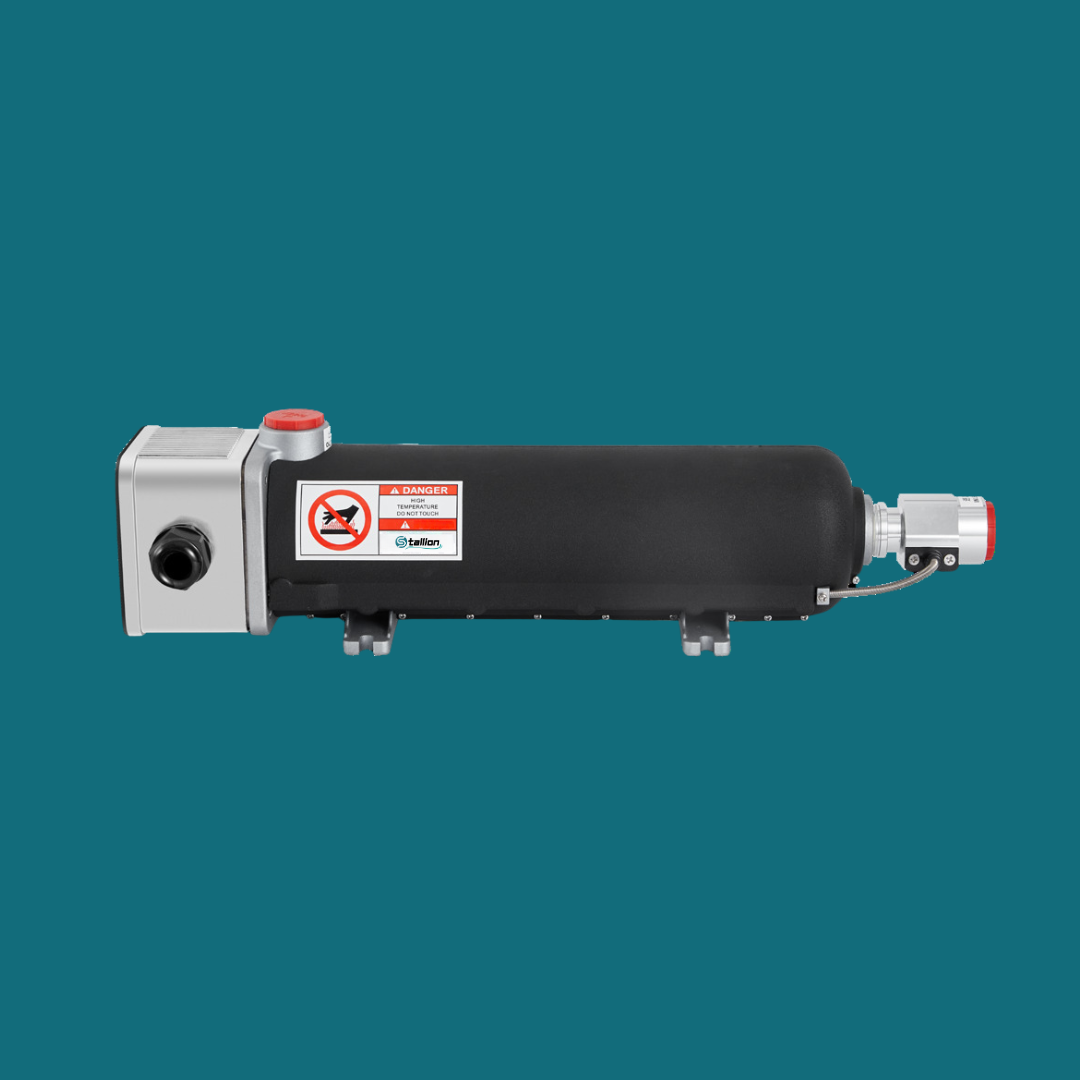

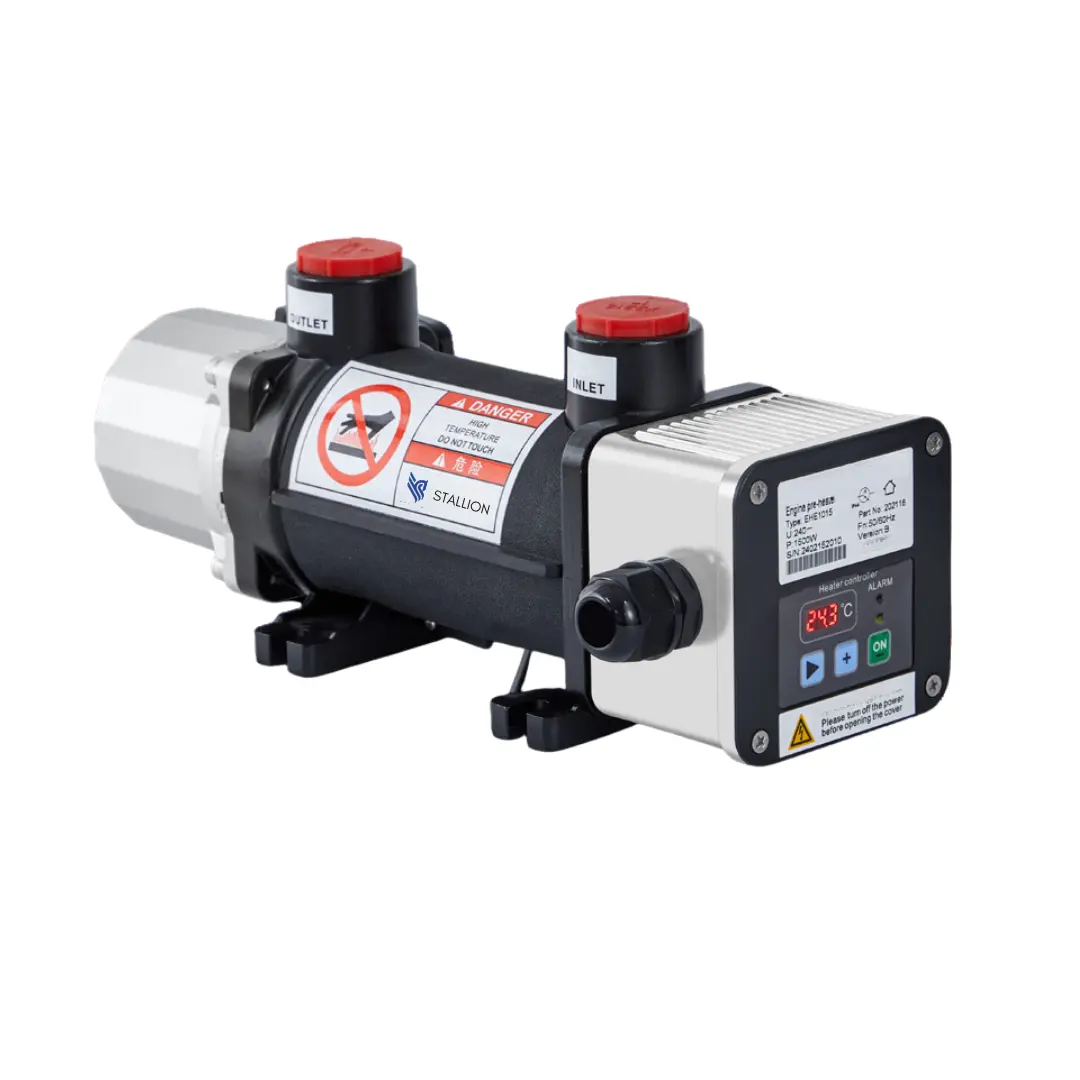

Medium-Capacity Preheaters

Inline 2000W and 2500W models are available for approximately 10L and 13L engines.

High-Capacity Preheaters

AC 240V models from 3000W to 5000W are available for engine capacities up to approximately 25L.

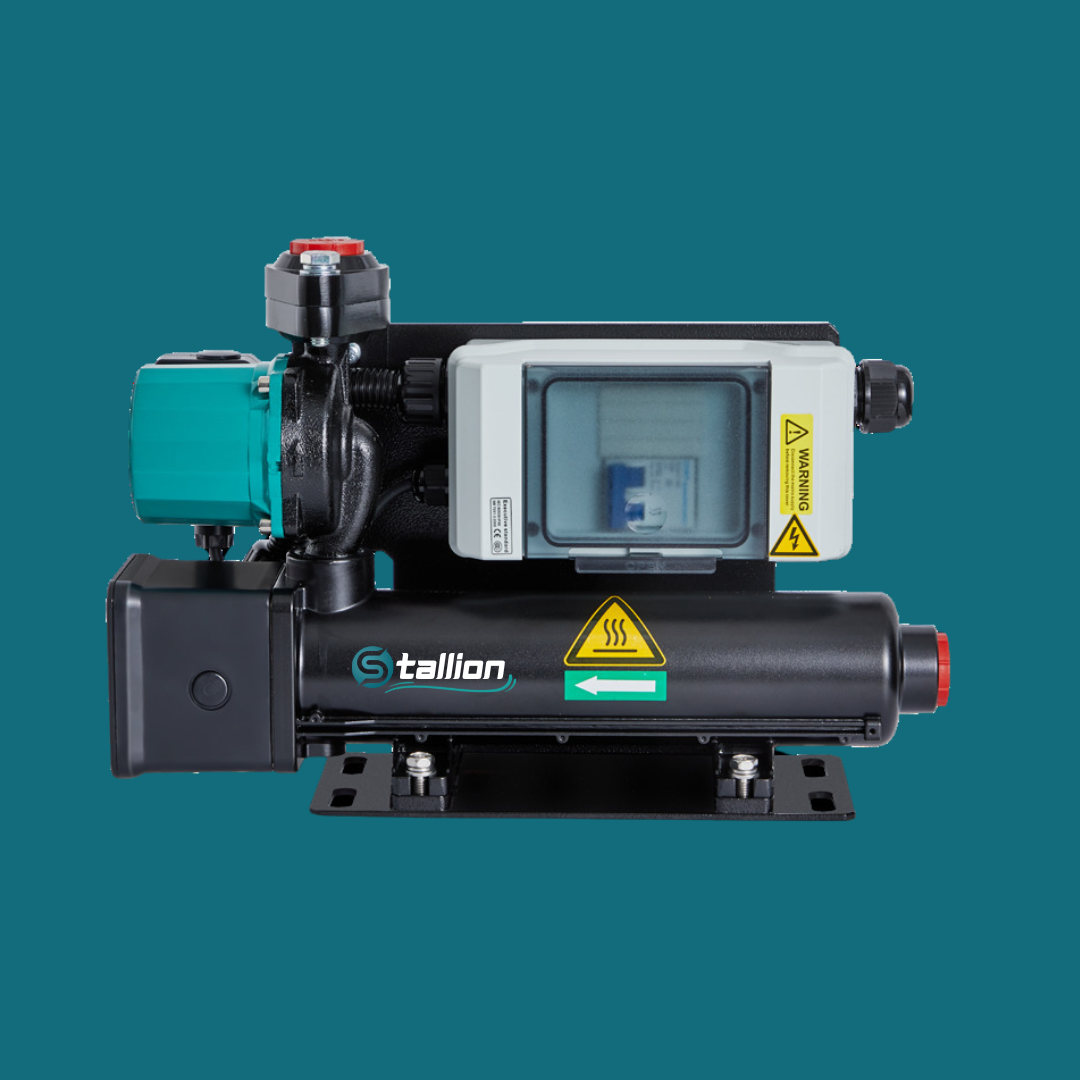

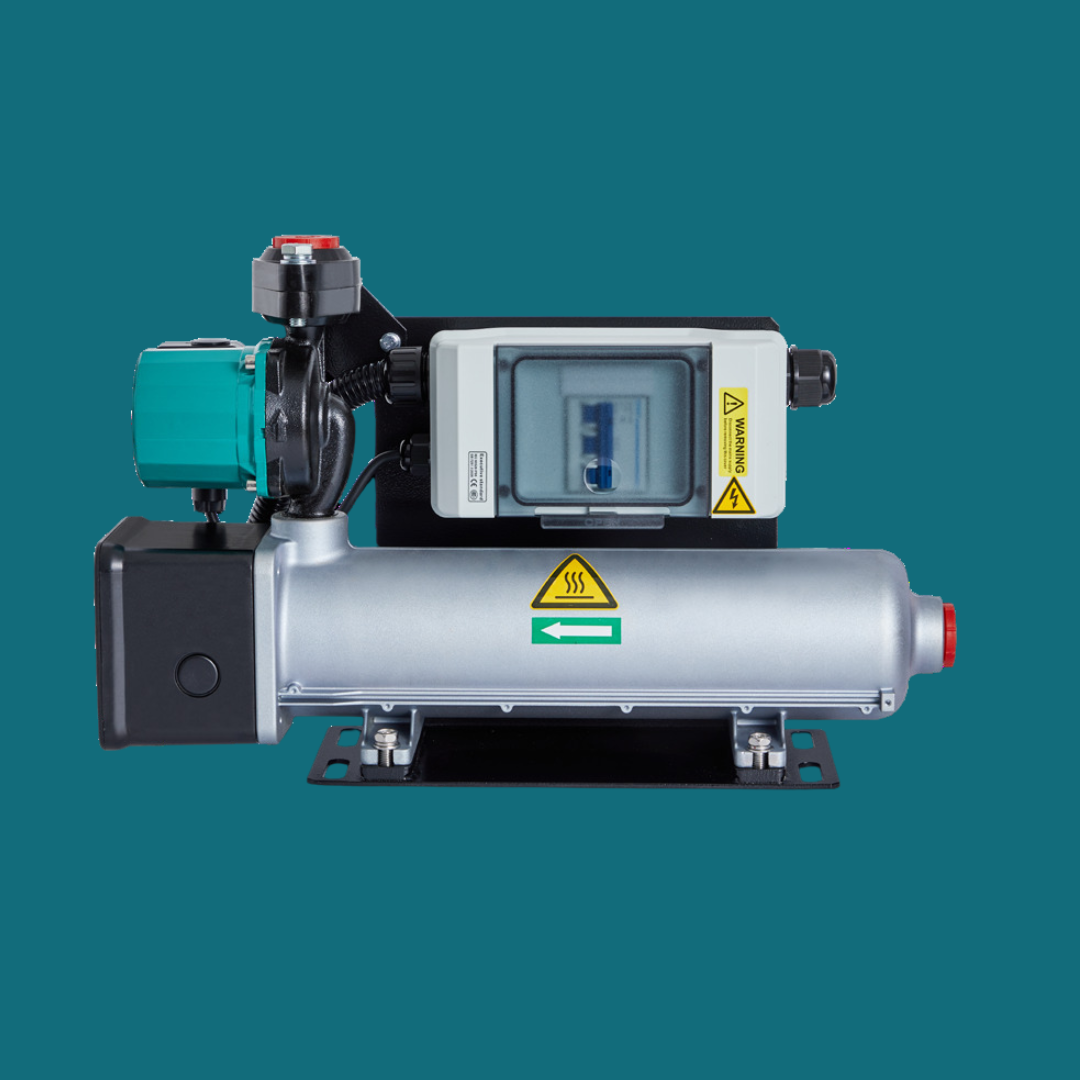

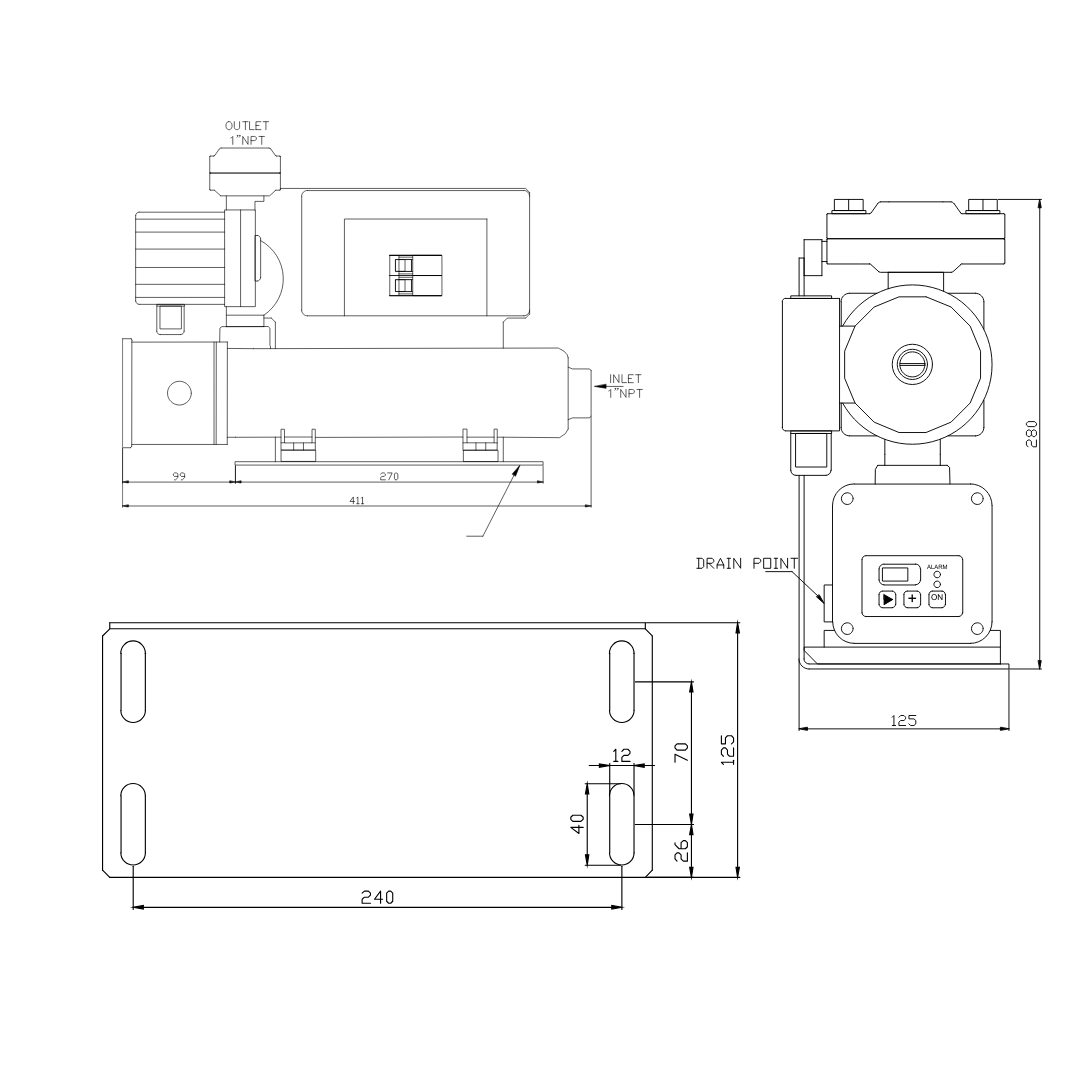

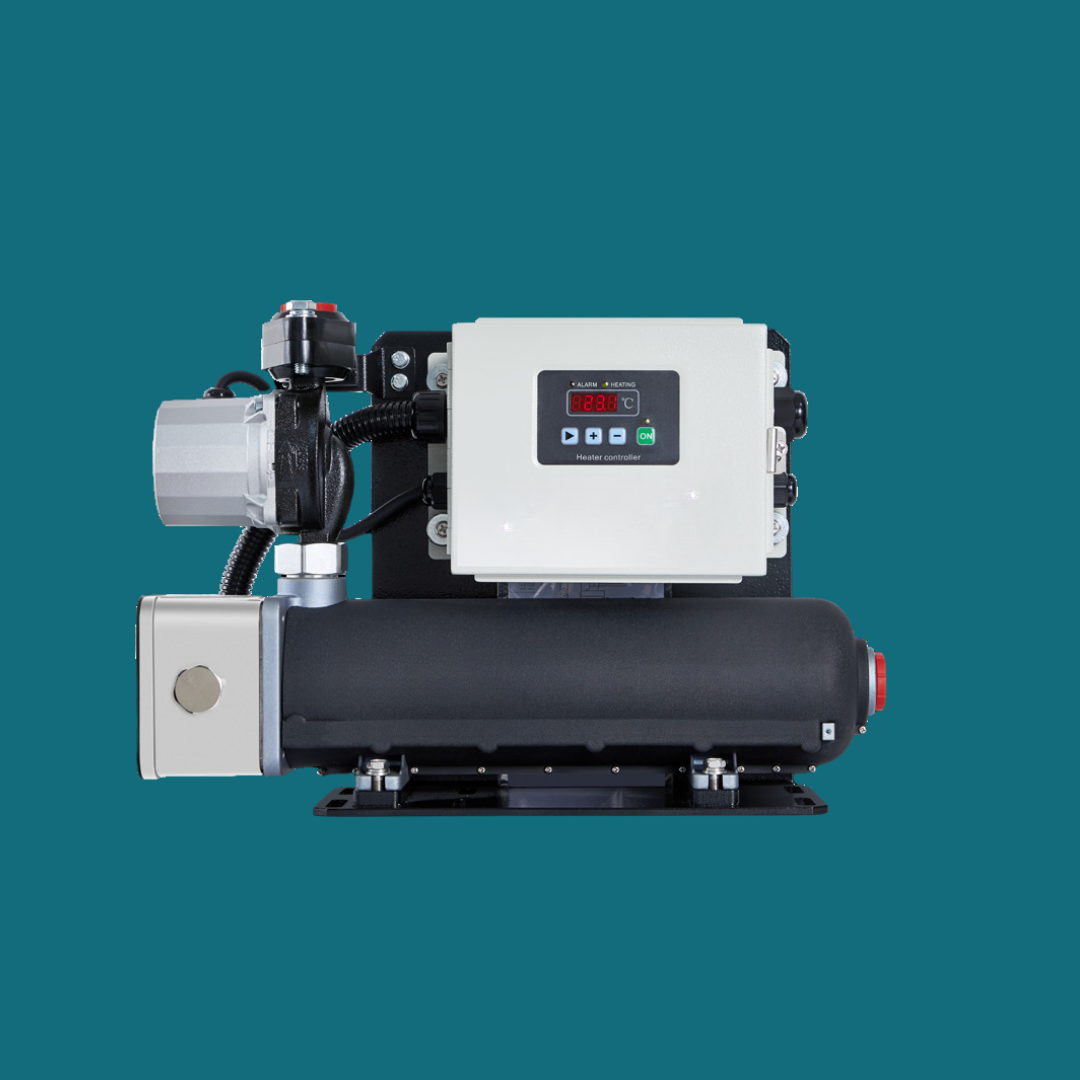

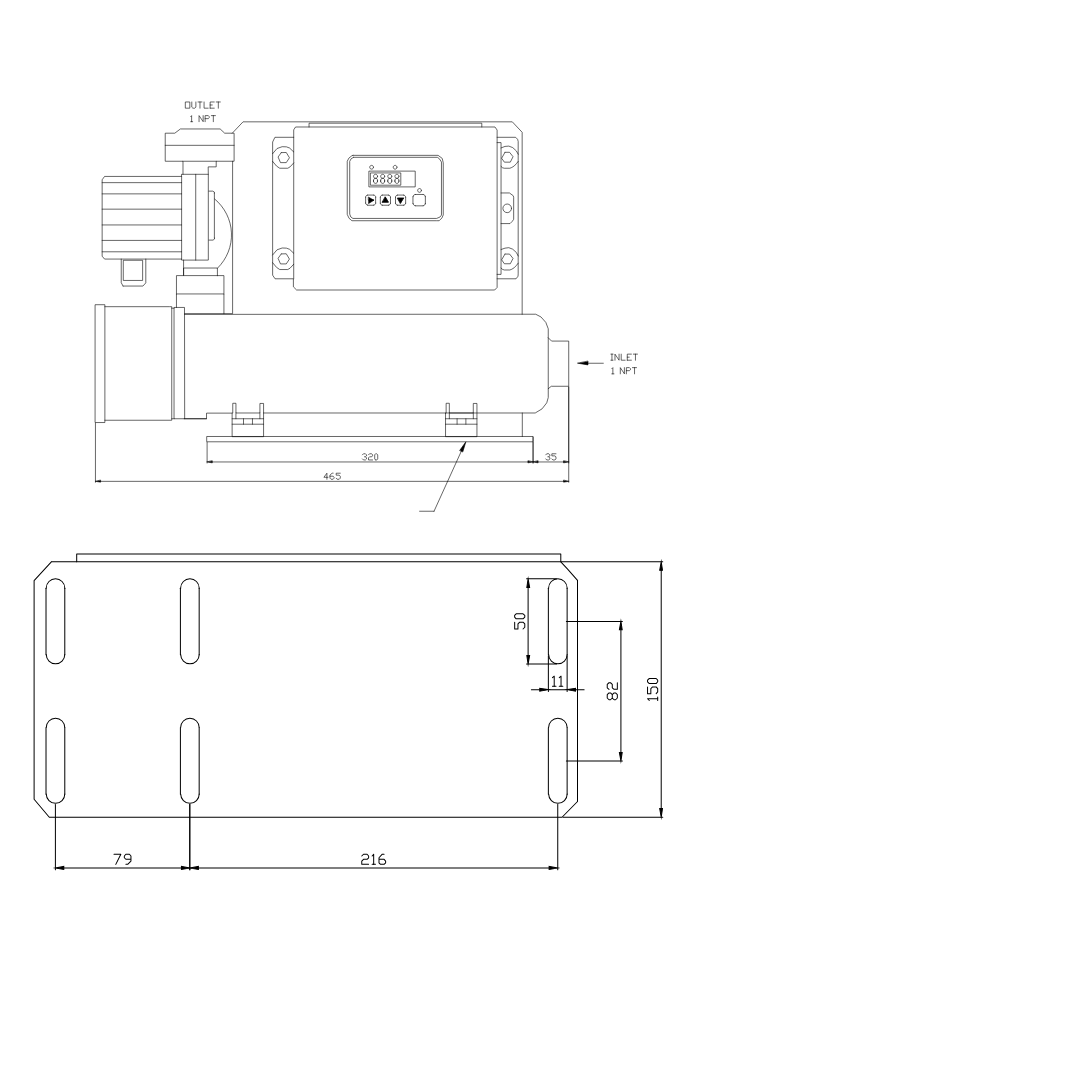

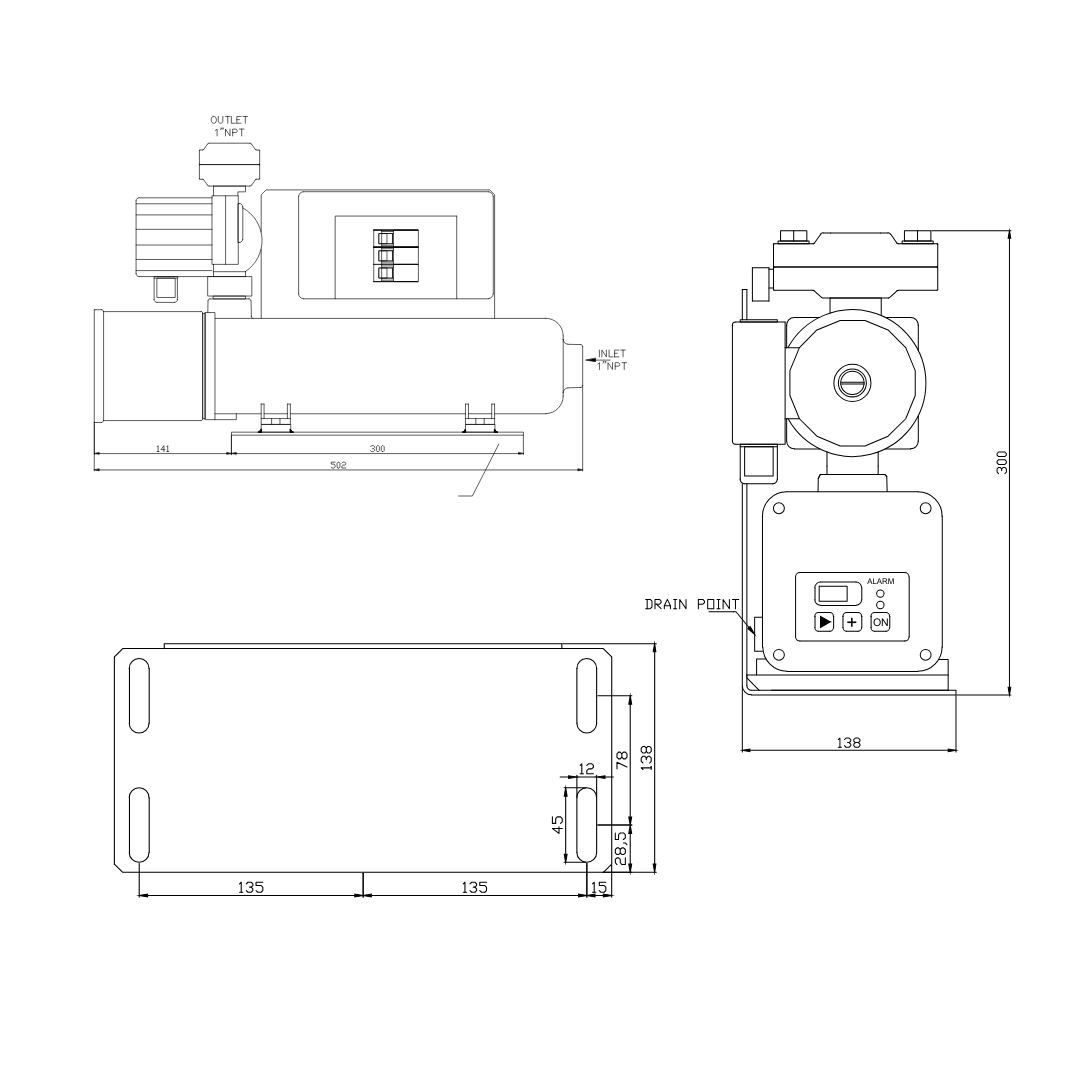

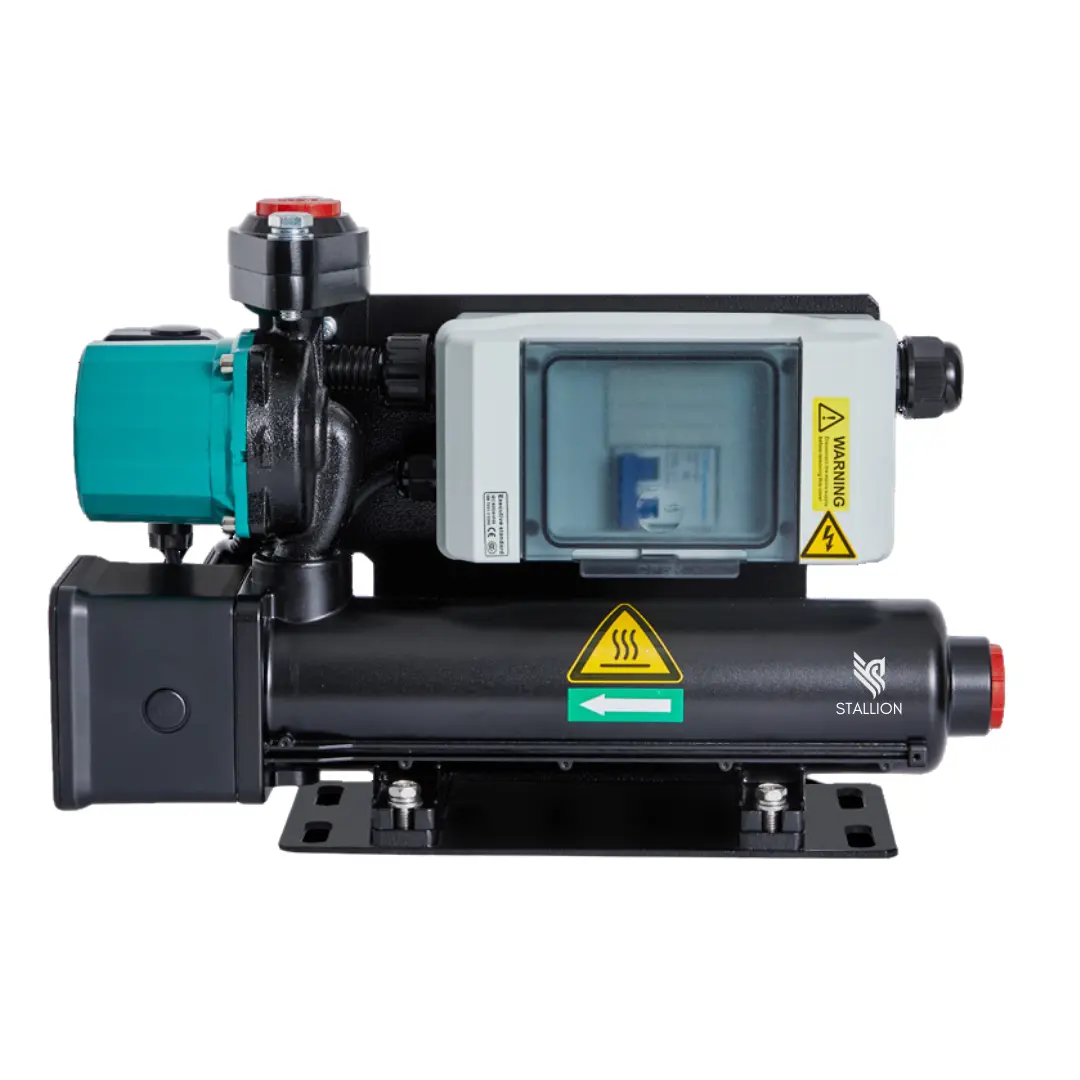

Pump-Assisted Systems

Selected models combine a heater, coolant circulation pump and control components in one assembly.

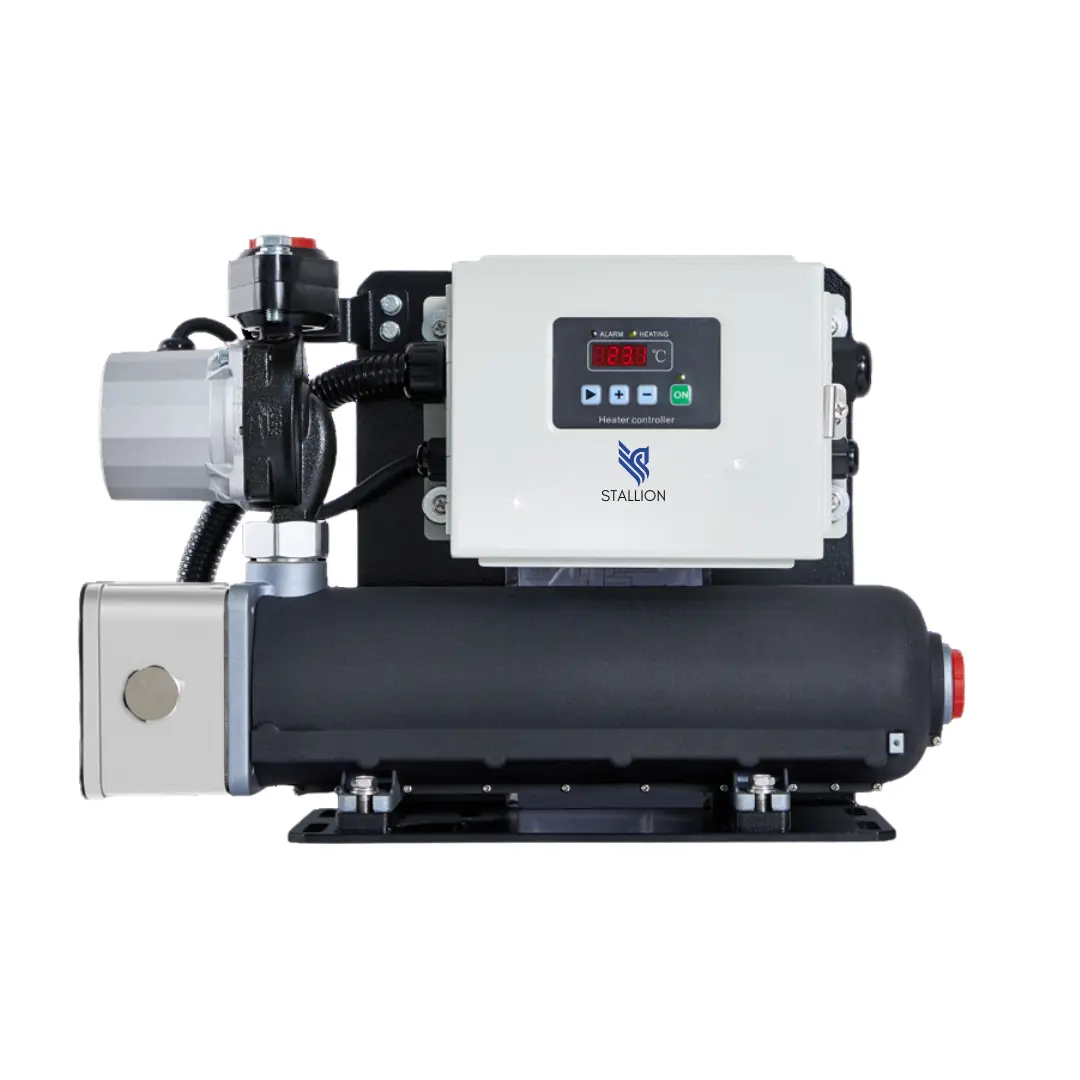

Single-Phase Options

AC 240V single-phase models are available across multiple power and engine-capacity ranges.

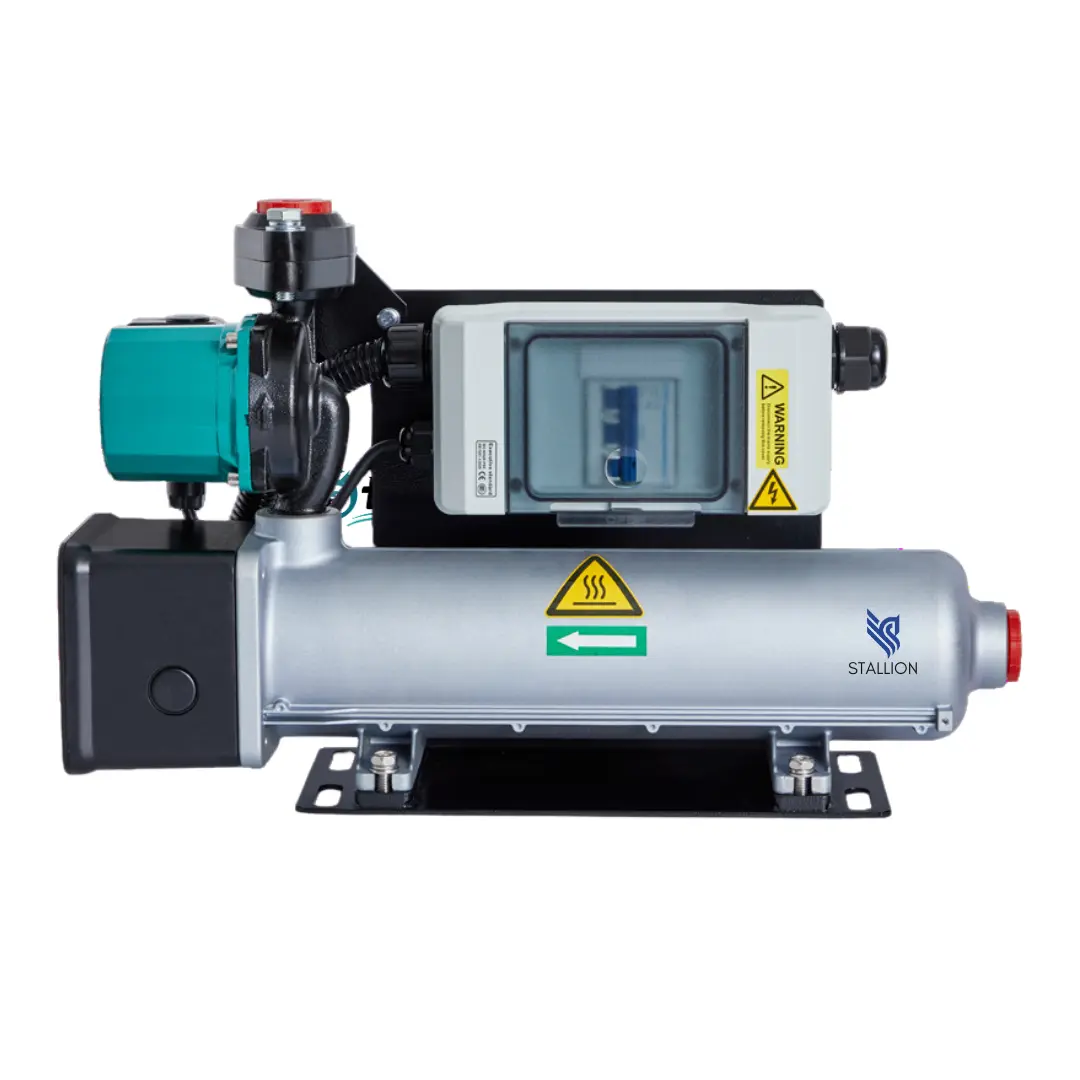

Three-Phase Options

AC 415V three-phase models provide outputs from 4500W to 9000W for engine capacities up to approximately 75L.
