Integrated Battery Charging Panels for 12V and 24V Systems

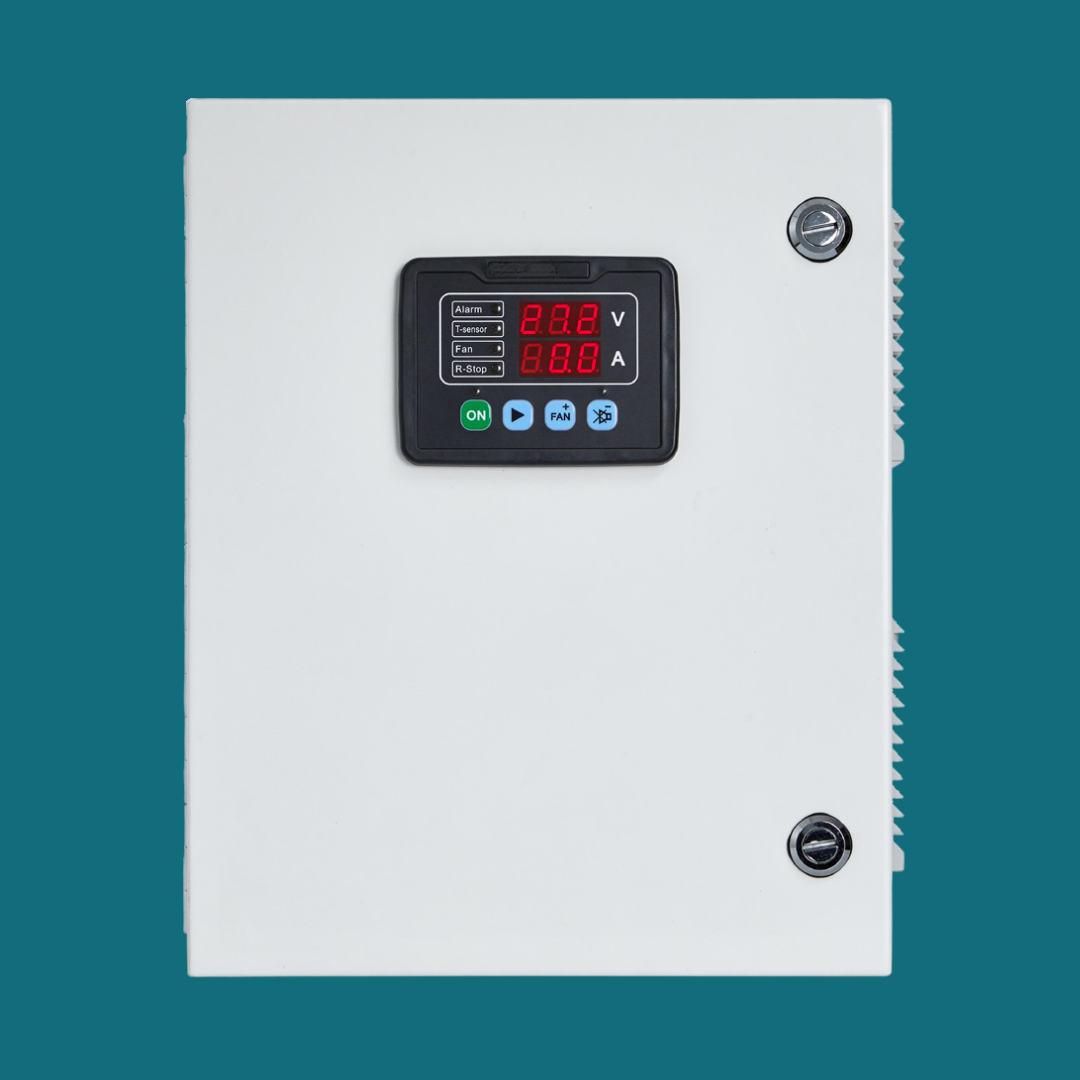

The Stallion charging panel range combines a configured intelligent charger, digital voltage and current display, electrical enclosure and heat-dissipation arrangement in one integrated assembly. Five models are available, allowing the panel to be selected according to battery voltage, charging current, maximum output power and enclosure requirements.
The range includes the STAC7031, STAC7081, STAC7121, STAC7201 and STAC7401. Maximum output power extends from 90W to 1000W, with model-specific charging outputs including 12V 5A or 24V 3A, 12V 10A or 24V 8A, 12V 15A or 24V 12A, and higher-output 20A and 40A configurations.
Depending on the selected model, heat dissipation is provided through ventilation openings, one cooling fan or two cooling fans. Selected configurations include RS485 communication, while the listed operating and storage temperature ranges are -30°C to 60°C and -40°C to 80°C respectively.
